EinScan EinScan

SHINING 3D의 휴대용 3D 스캐너

Backed by almost 20 years of experience our team has developed a range of cost-efficient handheld 3D scanners for every use case. Whether you choose a portable 3D scanner from the EinScan H or the EinScan Pro series, you’re getting a smooth, plug-and-play experience and exceptional customer service.

SHINING 3D’s handheld 3D scanning solutions all come with our comprehensive EXScan software. You’ll be able to automatically align your scans, post-process the data with intuitive tools, and more. Seamlessly export your 3D captures to your favorite 3D software, such as Fusion 360, Meshmixer, ZBrush, and other popular suites.

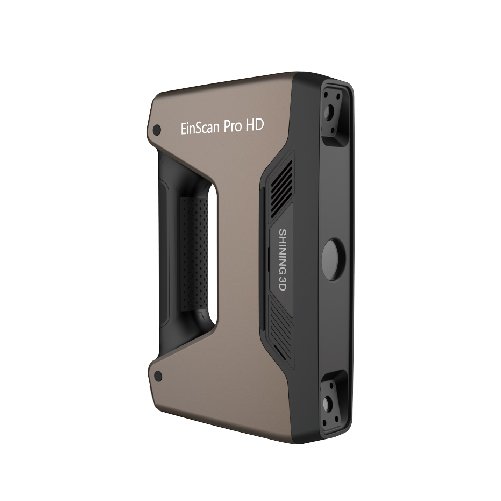

EinScan Pro HD

  • 예술 산업분야에 적합
  • 고 해상도 및 하이 디테일
  • 손잡이 어둡고 대비가 잘 되는 금속 표면
  • 컬러 팩 및 산업용 팩 추가 기능(옵션)
자세한 내용

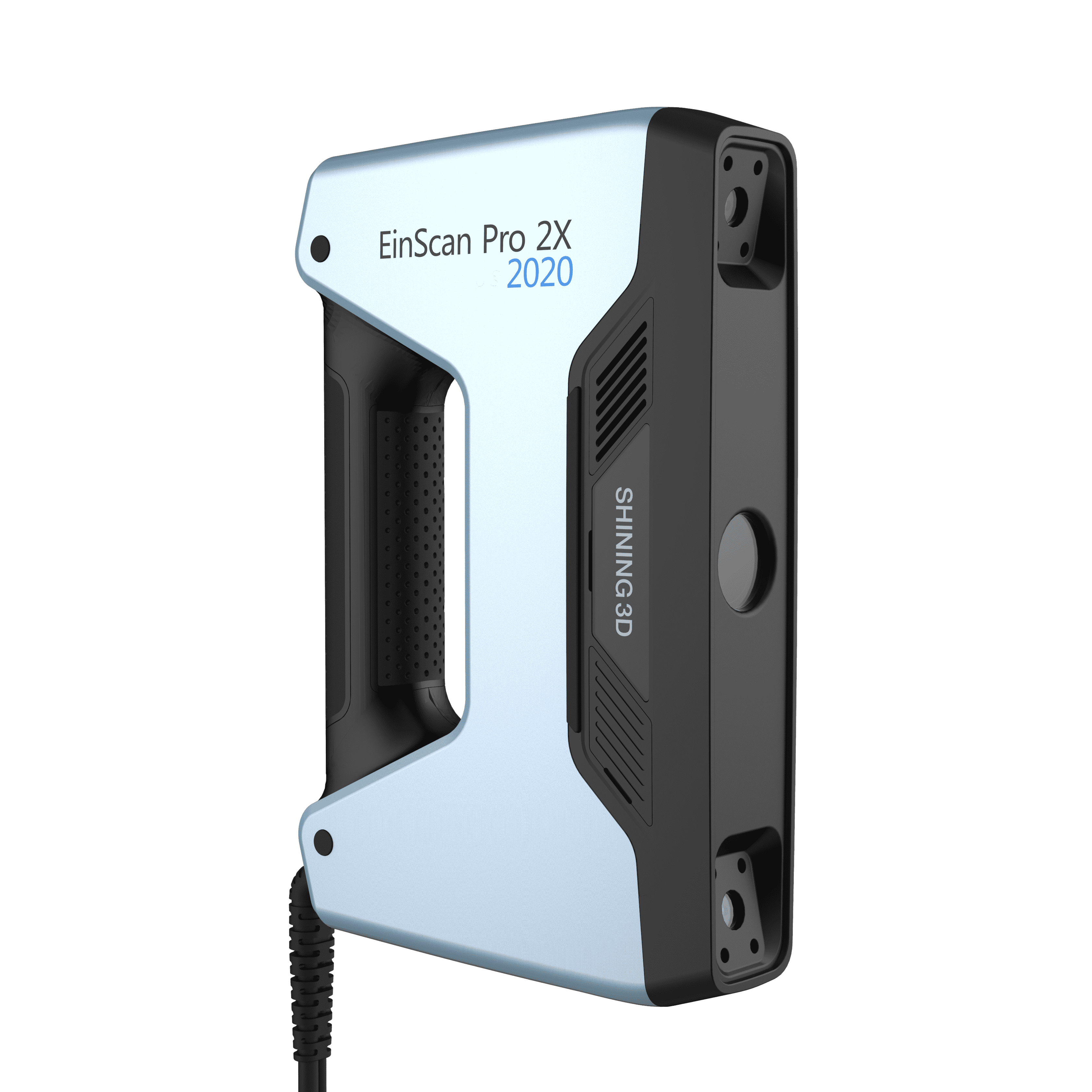

EinScan Pro 2X

  • 다기능성
  • 작은 사이즈 및 중간 사이즈 적합
  • 풀컬러 카메라 추가 옵션
  • 간편성
자세한 내용

EinScan HX

  • 역설계에 적합
  • 하이브리드 블루 레이저 및 LED 광원
  • 풀컬러 카메라 내장
  • 간편성
자세한 내용

EinScan H2

  • 의료 분야에 적합
  • 적외선 및 구조화된 하이브리드 광원
  • 풀컬러 카메라 내장
  • 간편성
자세한 내용

어떤 EinScan 핸드헬드 3D스캐너를 사용해야 할지 확실하지 않습니까?

가장 좋은 휴대용 3D스캐너는 응용사례에 적합한 스캐너입니다. 제품 선택기(메일 필요 없음)를 사용하여 사양과 가격을 확인할 수 있습니다.

If you’re more of an explorer, take your time and look at dozens of user case studies and stories for inspiration. SHINING 3D users all around the world are using their handheld 3D scanners for Art & Heritage, Design, Healthcare, Manufacturing & Reverse Engineering, and Research & Education applications.

휴대용 3D스캐너는 어떻게 작업합니까?

Most handheld 3D scanners either use structured light or laser triangulation technologies. Often, these technologies are paired with photogrammetry. Let’s take a quick look at how these 3D scanning technologies work.

구조화된 조명 3D스캐닝

In this case, the handheld 3D scanner projects a pattern of light onto the object. Its camera then takes a picture of the object. That way, the 3D scanning software is able to compare the original pattern to the projected one, as it deforms when it hits the object’s surfaces.

레이저 3D 스캐닝

Similarly to the structured light method, the 3D handheld scanner projects laser lines onto the object. The software then calculates how much time it takes for the laser to bounce back to the 3D scanner, and from what angle.

사진 측량

Photogrammetry involves taking several overlapping pictures of an object from different angles. The software then compares each photo and is able to determine the object’s geometry. In handheld 3D scanning, photogrammetry can be used for two reasons:

  • To increase accuracy: When used with markers, the photogrammetry module identifies the location of each marker to provide a sort of “skeleton” to then fill in with laser or structured light scanning.
  • To capture colors: Photogrammetry cameras on handheld 3D scanners are often used to capture colors, also referred to as “textures”. The software creates a texture map, which it wraps around the 3D model.

휴대용 3D스캐닝 솔루션을 선택해야 하는 이유는 무엇입니까?

SHINING 3D에서는 3D스캐너가 모든 엔지니어 및 디자이너의 툴킷에 있어야 한다고 생각하기 때문에 수익의 절반 이상을 R&D 부서에 투입했습니다. 이를 통해 엔지니어는 지속적으로 제품을 최적화하고 피드백에 신속하게 대응할 수 있었습니다.

2006년부터 측정 응용사례를 위해 산업용 3D스캐너를 개발하고 있습니다. 우리의 목표는 성능, 사용자 경험 및 보안을 희생하지 않고 모든 사람이 최신 3D스캐닝 기술을 사용할 수 있도록 하는 것입니다.

예산과 응용사례에 관계없이 빛나는 3D스캐너를 갖을 수 있습니다.

적합한 휴대용 3D스캐너를 찾아드릴까요?

저희 애플리케이션 엔지니어들이 도와드릴 수 있습니다.

문의사항 있으시면 언제든지 작성하여 보내주시면 됩니다.

연락하기

속도, 정확도, 해상도 등을 기준으로 휴대용 3D스캐너를 비교합니다.

Choosing a handheld 3D scanner isn’t always straightforward. There are so many factors that come into play: object size, accuracy, resolution, light source, ...

Are you stuck between different models? Check our EinScan handheld 3D scanner comparison table below to get a clearer picture.

핸드헬드 3D스캐너 EinScan Pro 2X EinScan Pro HD EinScan H2 EinScan HX
광원 화이트 LED 화이트 LED 화이트 LED, 적외선 블루 LED, 블루 레이저
체적 정확도 0.1 mm + 0.3 mm/m 0.05 mm + 0.3 mm/m 0.05 mm + 0.1 mm/m (표준 스캔)
0.1mm +0.3 mm/m (몸체 스캔)
0.04+0.06 mm/m (레이저 모드)
포인트 거리 0.2 mm 0.2 mm 0.2 mm 0.25 mm
스캐닝 속도 1,500,000 포인트/초 3,000,000 포인트/초 1,200,000 포인트/초, 표준 스캔
1,060,000 포인트/초, 몸체 스캔
1,200,000 포인트/초
물체 크기 3 cm - 100 cm 3 cm - 300 cm 30 cm - 300 cm 30 cm - 300 cm
고정 스캔 모드 Yes (w/ Industrial pack) Yes (w/ Industrial pack) No No
컬러 획득 Yes (w/ color pack) Yes (w/ color pack) Yes Yes (except laser scan mode)

핸드헬드 3D스캐너 비교표 해석방법

Some specifications are measured and/or explained differently from one manufacturer to another. Here is what we mean by:

  • Light source: This is the type of light that the 3D scanner projects onto the object. All EinScan solutions use structured light technology; the EinScan HX hybrid 3D scanner also offers laser triangulation.
  • Volumetric accuracy: The bigger the object, the less accurate the scan will be. If we take the EinScan H as an example, each additional meter in object size means a decrease in accuracy of 0.1 millimeters.
  • Resolution: We are referring to point distance, also known as point-to-point distance. The smaller the point distance, the higher the resolution.
  • Scanning speed: Here, the 3D scanning speed is expressed in millions of points per second. The more points acquired per second, the less you’ll have to scan over the same area.
  • 물체 크기: 3D스캔하는 물체의 권장 최소 및 최대 크기입니다.
  • Fixed scan mode: Some handheld 3D scanners can be used as stationary 3D scanners. This means that you can use them with a tripod and automatic turntable, for example.
  • Color acquisition: You can capture your object’s geometry, and you can capture the object’s colors. The EinScan H/HX series have a built-in camera to do this, while the EinScan 2X, 2X Plus, and Pro HD require an add-on.

휴대용 3D스캐너 리뷰

관련 매체와 기타 사용자가 우리의 휴대용 3D스캐너를 어떻게 생각하는지 확인합니다.

EinScan HX 리뷰

사용자 입장에서 EinScan HX는 Shining 3D의 성숙함을 보여줍니다. 소프트웨어 및 인터페이스가 지속적으로 개선하고 있습니다. 특히 컬러 기반 피드백이 개선했습니다. 많은 응용영역에 커버할 수 있습니다.

전체 리뷰 읽기

“Regarding Shining 3D as a whole, we’ve seen a real evolution in their products over the years. Their 3D scan- ners – or at least those we’ve tested – have always offered great value, and now more than ever with the EinScan HX. We noticed improvements on all fronts: hardware, software, and versatility.”

전체 리뷰 읽기

EinScan H 리뷰

EinScan Pro 2X 시리즈 리뷰

“SHINING 3D has built a reputation for affordable, high-performance 3D scanning devices. We get to grips with its latest device, which offers flexibility and affordability, and comes with some very helpful, easy-to-use software.”

전체 리뷰 읽기

“The EinScan Pro 2X Plus is quite a unique offer on the market at the time of writing this review. It is affordable, offers modularity (with three scanning modes), and provides a professional-grade performance.”

전체 리뷰 읽기

“It’s intuitive, it’s fun and it’s simply good at what it does. If you’re looking at a scanner for your business or workplace that offers professional workflows at a reasonable price, this machine may have everything you need.”

전체 리뷰 읽기

EinScan Pro HD 리뷰

SHINING 3D 스캐너 커뮤니티

사용자 커뮤니티에 가입하여 유용한 힌트, 조언 및 영감을 얻을 수 있습니다.

지금 참여

휴대용 3D 스캐너 FAQ

휴대용 3D스캐너란 무엇입니까?

A handheld 3D scanner is a portable 3D scanning solution. Handheld options offer more versatility when scanning large objects or fitting into narrow spaces.

휴대용 3D스캐너의 가격은 얼마입니까?

The cost of a handheld 3D scanner can depend on factors such as features, accuracy, software, and overall quality. Handheld 3D scanner prices typically range from several hundred dollars to over 20,000 dollars.

3D 핸드헬드 스캐너를 어떻게 구입합니까?

If you’d like more information about our 3D scanners, reach out to our Sales team. They’ll put you in touch with a vendor in your country or region.
